High Frequency Impedance Analyzer Ultrasonic Testing Machine With
Longlife
Description:
For ultrasonic components measuring instrument, the most important
is the admittance chart, logarithmic graph of the two graphics (the
two graphics is the main method of qualified qualified), and more
than a dozen parameters: resonance frequency Fs, the maximum
conductance Gmax, bandwidth F2-F1, anti-resonance frequency Fp,
quality factor Qm, free capacitance CT, dynamic resistance R1,
dynamic inductance L1, dynamic capacitance C1, static capacitance
C0, effective electromechanical coupling coefficient Keff.
The Measuring instrument which can easily replace much more complex
and more complicated, also many times more expensive instruments
from Agilent/HP, as for instance: HP Impedance Gain-Phase Analyzer
4294A, Agilent E5100A, Network Analyzer, HP 3563A,Control System
Analyzer etc. It is also very easy to use HS520A (by engineers or
ordinary production workers).
Specification:
Specification
Performance | HS520A |
| Product feature | Portable, 8inch screen, Full touch screen |
| Dimension | L24cm,W19cm,H10cm |
| Frequency range | 1KHz~500KHz/1Mhz/hz |
| Measurement Index | All the parameters, the graph |
| Measurement Accuracy | < 0.5% |
| Measurement Speed | 5s/one pass(600scan point) Adjustable |
| Frequency Accuracy | ±10ppm |
| Phase Resolution | 0.15 degree |
| Environment Temperature | 10～40degree centigrade |
| Impedance Range | 1Ω～1MΩ |
| Frequency Step | 0.1Hz～any |
| Power Supply | AC100V～AC250V,50～60Hz, 30W |
Main features and advantages:
1. The large screen and full-screen touch make the HS520A not only
have the operating experience of HS70A-P (computer version), but
also have no sense of cumbersomeness with computer operation.
2. Relying on the new and powerful ARM processor data processing
capability, the measurement accuracy of HS520A is much higher than
that of HS70A-D (with display version), and can reach the level of
HS70A-P (computer version).
3. The full-screen touch operation is more user-friendly, and does
not require a large number of physical buttons of HS70A-D (with its
own display version). Therefore, it is extremely simple to operate
the instrument, and the product is smaller in size, lighter in
weight and more portable.
4. It can be operated by connecting to a computer like HS70A-P, and
the software is fully compatible, users do not need to be familiar
with the software operation.
5. When developing the HS520A, it took into account the operation
needs of the automated production line, and reserved the 232
interface and IO communication interface (relay input and output)
for communication with the PLC.
6. The operation of HS520A is no longer based on Windows system,
and has the ability to run reliably on the production line for a
long time.

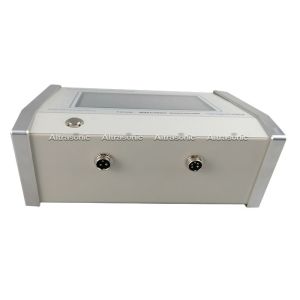

Detailed Images:
