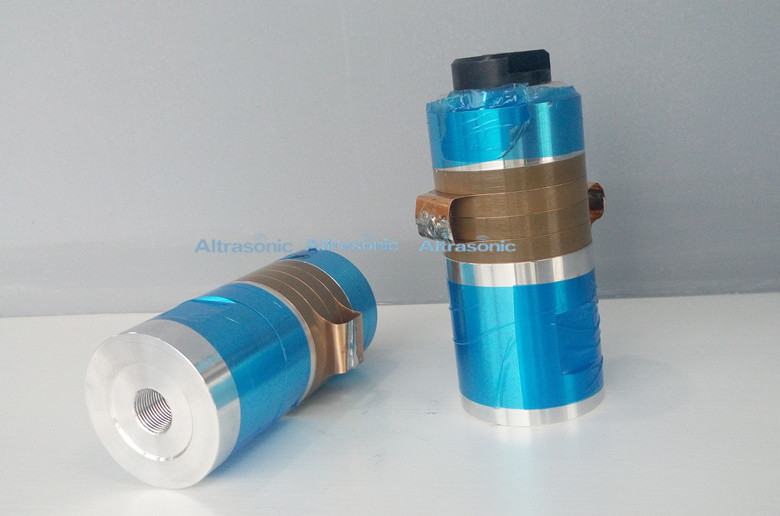

    2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-7015-4Z
    Certification : CE
    Price : Negotiable
    Payment Terms : T/T, Western Union
    Supply Ability : 10,000 units per month
    Delivery Time : 3 working days after received your payment
    • Product Details
    • Company Profile

    2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer

    2600W Ultrasonic Piezoelectric Transducer , High Power Piezo Transducer


    Product Description:


    The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.


    Specifications:


    ModelHS-7015-4Z
    Frequency15 khz
    Output power2600 watt
    Joint boltM20*1.5
    Ceramic disc Diameter70 mm
    Quantity of Ceramic discs4 pcs
    Capacitance12.5~14nf
    Amplitude10 um
    Applicationwelding machine

    Applied Range:


    Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,which can be widely used to do welding in various kinds of industries.

    Applied Industries:automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing, packing, office supplies, toys, etc.


    Applied Machines: Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
