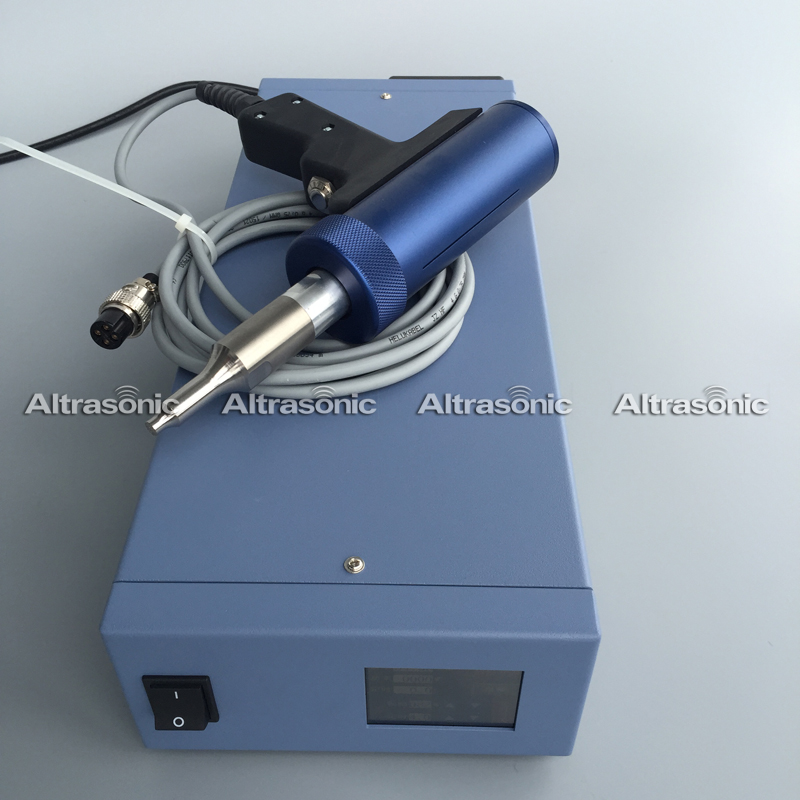

35Khz 500 Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

Description:

Ultrasonic welding remains one of the fastest and most cost effective techniques for welding smaller thermoplastic parts. Using ultrasonic welding, one part is held stationary in a holding fixture while the other part is vibrated acoustically against it under pressure, creating frictional heat at their joining surfaces.

Hand-held ultrasonic welding machine, also known as ultrasonic spot welding machine. It is an ultrasonic welding device that uses the principle of ultrasonic high-frequency vibration friction to make the welding surface of the workpiece friction and generate heat while applying pressure thereto, so that the structural molecules are fully activated to form a fusion between the molecular layers.

Specifications:

Affecting Factors in Ultrasonic Welding:

Ultrasonic automotive plastics as the condition of ultrasonic welding, the most important is the time to apply welding energy (vibration, welding time) length and pressure, of course, other conditions are also very important. Welding temperature ultrasonic welding material viscosity flow temperature. Otherwise the material will not melt.

Attention for Welding

The welding time varies depending on the material and the shape of the product. The welding time of some molded articles is only 0.2 seconds. Over time will cause excessive welding and produce a lot of flash and bubble, resulting in poor airtight, must pay attention. Cooling (holding) time For crystalline plastic, if the temperature below the melting point, the connection will be solidified, usually the pressure time is maintained between 0.1-0.2 seconds. AMMA plastic).

Applications:

Automobile and motorcycle: battery, front Angle lamp, rear lamp, instrument, reflector, manual auto protection jacket welding, auto door plate welding, auto front baffle welding, auto floor welding, auto bumper repair welding, etc.

Advantages:

1. Adopt Taiwan ultrasonic system.

2. Time control and set ultrasonic time.

3. It has the function of overheat and overload protection with high reliability.

4. Adaptive output power load, high efficiency and excellent energy saving.

5. Output amplitude is stepless and adjustable, and ultra-resistant folding connection line is configured.

6. Small size, large power, high integration, customized by professional manufacturers of components and components.

7. For ultrasonic testing, the output of ultrasonic can be controlled manually, and it is used to check whether the power supply is normal during debugging and maintenance.

35Khz 500Watt Handheld Ultrasonic Spot Welding Machine For Auto Parts

Tag: ultrasonic spot welder,portable spot welder

Hangzhou Altrasonic Technology Co., Ltd

Located in Hangzhou, China, was found in 2010. Altrasonic has many years' experiences in the business of industrial ultrasonic components and ultrasonic devices in China. We use this experience and experise to provide only the best ultrasonic devices and components based on the competitive price.

Altrasonic equipment focused on the r&d of high power ultrasound applications, Altrasonic has absolute leading
core technology, the most stable and mature manufacturing technology, rich experience, can provide direct
ultrasonic application scheme demonstrate, structure design, system configuration and related parts production.

Altrasonic equipment cooperated with the key graphene manufacturers, applied the ultrasound equipment in
graphene preparation process of industrialization firstly, and make the ultrasonic be a good supporting to the large-scale preparation of the high quality and low cost graphene materials.

Our company mission:Ultrasonic Technology makes life easier.

WHY CHOOSE ALTRASONIC ?

• OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Indonesia, Singapore, Türkiye, Malaysia,  Germany, and other country still being discussing.

• Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound,  and the importance of team spirit of cooperation.

• Half the price, double the value. Every product reach you have been test in our company three times, and with  72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to
 upgrade our products.

• Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.

• Individual Customize. We can customize products according to your requirements, Also supply OEM service.

 Customize ultrasonic solution for different applications.
