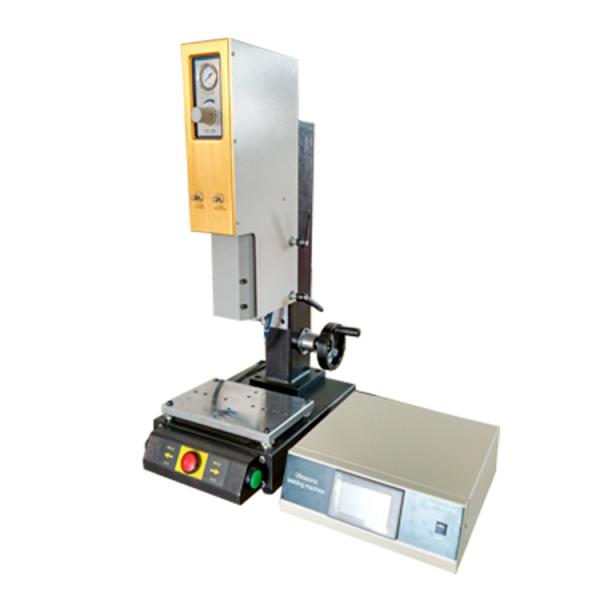

    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-D20
    Certification : CE
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 200 units per month
    Delivery Time : 7 working days after received your payment
    • Product Details
    • Company Profile

    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing


    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing


    Description:

    Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.

    Applications:


    Toy industry: such as toy gun, water gun, telephone and rag baby etc.

    Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

    Car industry: Car light.

    Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.

    General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.


    Specifications:


    Model

    HS-20

    HS-15

    HS-H20

    HS-H15

    HS-28

    Frequency

    20KHZ

    15KHZ

    15KHZ

    15KHZ

    28KHZ

    Output Power

    1,500W

    2600W

    2400W

    4200W

    800W

    Welding Capability

    130 m/m φ

    160 ~ 200 m/m φ

    160 ~ 200 m/m φ

    160 ~ 200 m/m φ

    8 ~ 20 m/m φ

    Dimension

    420 x 630 x 920 mm

    420 x 630 x 920 mm

    420 x 630 x 920 mm

    420 x 630 x 920 mm

    420 x 630 x 920 mm

    Net Weight

    95 kg

    110 kg

    110 kg

    110 kg

    95 kg

    Line Source

    220V 10A

    220V 10A / 220V 15A

    220V 10A / 220V 15A

    220V 10A / 220V 18A

    220V 5A


    Competitive Advantage:


    Service: Timely feedback; Free design; 1 year Warranty.

    Quality: Full testing before shipping; we reputation from customer.


    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing

    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing


    20KHz Ultrasonic Plastic Welding Machine For Electron / Stationery Packing
