    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

    Ask Lasest Price
    Brand Name : Altrasonic
    Model Number : HS-D20
    Certification : CE
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 200 units per month
    Delivery Time : 7 working days after received your payment
    • Product Details
    • Company Profile

    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps


    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps


    Description:

    Ultrasonic welding equipment can be easily customized to fit the exact specifications of the parts being welded. The parts are sandwiched between a fixed shaped nest (anvil) and a sonotrode (horn) connected to a transducer, and a ~20 kHz low-amplitude acoustic vibration is emitted. (Note: Common frequencies used in ultrasonic welding of thermoplastics are 15 kHz, 20 kHz, 30 kHz, 35 kHz, 40 kHz and 70 kHz). When welding plastics, the interface of the two parts is specially designed to concentrate the melting process. One of the materials usually has a spiked energy director which contacts the second plastic part. The ultrasonic energy melts the point contact between the parts, creating a joint. This process is a good automated alternative to glue, screws or snap-fit designs. It is typically used with small parts (e.g. cell phones, consumer electronics, disposable medical tools, toys, etc.) but it can be used on parts as large as a small automotive instrument cluster.

    Applications:


    Toy industry: such as toy gun, water gun, telephone and rag baby etc.

    Electronic industry: The gum case of watch, nylon watch band, calculator, sound box wraps hull, cell phone battery etc.

    Car industry: Car light.

    Pack an industry: Disguise box, PVC packing box, toothpaste tube etc.

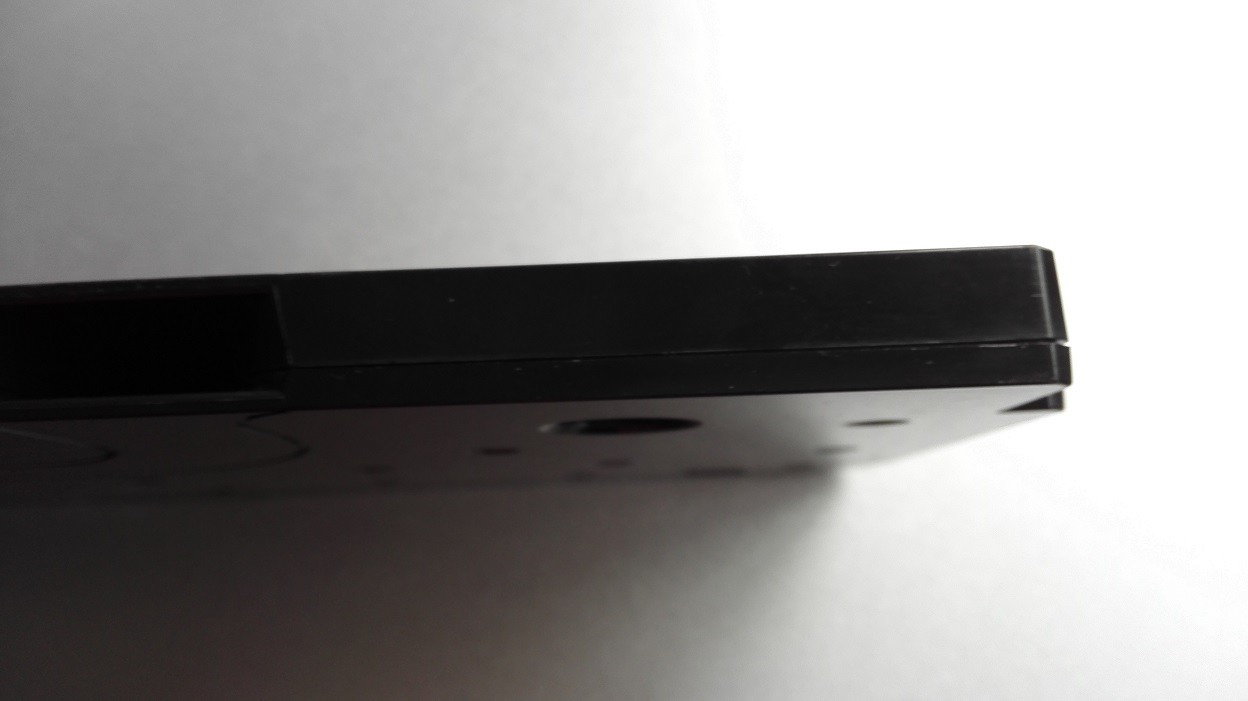

    General business ware: The typewriter color take, video cassette rack, tape box, computer disk etc.


    Specifications:


    ModelHS-20HS-15HS-H20HS-H15HS-28
    Frequency20KHZ15KHZ15KHZ15KHZ28KHZ
    Output Power2,000W2600W2400W4200W800W
    Welding Capability130 m/m φ160 ~ 200 m/m φ160 ~ 200 m/m φ160 ~ 200 m/m φ8 ~ 20 m/m φ
    Dimension420 x 630 x 920 mm420 x 630 x 920 mm420 x 630 x 920 mm420 x 630 x 920 mm420 x 630 x 920 mm
    Net Weight100 kg110 kg110 kg110 kg95 kg
    Line Source220V 10A220V 10A / 220V 15A220V 10A / 220V 15A220V 10A / 220V 18A220V 5A

    Competitive Advantage:


    Service: Timely feedback; Free design; 1 year Warranty.

    Quality: Full testing before shipping; we reputation from customer.


    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps

    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps


    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps


    Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps


    Quality Heavy Duty Ultrasonic Plastic Welding Machine For Automotive Industry / Auto Lamps for sale
