4020-4Z Taiwan Type Ultrasonic Welding Transducer For Ultrasonic
Equipment
Specifications:
Model | HS-4020-4Z |
Frequency | 20 khz |
Output power | 900 watt |
Joint bolt | 1/2-20UNF |
Ceramic disc Diameter | 40 mm |
Quantity of Ceramic discs | 4 pcs |
Capacitance | 9-10 nf , 9.5-11nf |
Amplitude | 6 um |
Application | welding machine |
Description:
The 4020-4Z Taiwan Type Ultrasonic Welding Transducer is applied to different type ultrasonic welding machine, standard
welding machine, Evergreen type, NTK type welding machine, Branson
type. And can be connected with different type welding horn.
The transducer converts high-frequency electrical energy into
high-frequency mechanical vibrations. And it contains several
piezoelectric ceramic discs sandwiched under pressure between two
metal blocks. Between each disc is a thin metal plate, which forms
the electrode. When a sinusoidal electrical signal is fed to the
transducer via the electrodes, the discs expand and contract,
producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn
constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of
industries.
Applied Industries : automobile industry, electric industry,
medical industry, household appliance industry, non woven fabric
clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding
machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and
final assembly. The properties of piezoelectric materials can
change with time and pressure, so a bit of time on the shelf prior
to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance
are excellent.
4. In good heat resistance, can be used in a wide range of
temperature with long life and high reliability.

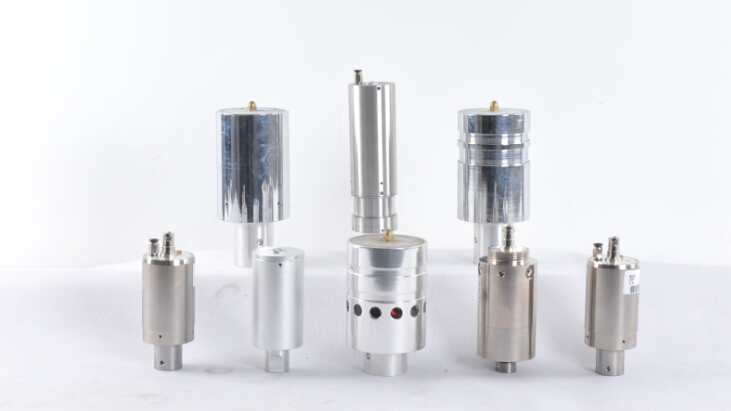

Industrial Application :
4020-4Z Taiwan Type Ultrasonic Welding Transducer For Ultrasonic
Welding Equipment
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts
for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20,
CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we
can give you a competitive price and custom-made it for you.
